特征匹配批量处理字符串混淆
记一次通过匹配字符串解密函数的特征以批量去除字符串混淆
前言
在学习Angr去混淆的时候学到了去除字符串混淆，于是找了个demo来测试一下学习得怎么样，本文主要还是使用IDAPython来静态去除字符串混淆，demo中有多个字符串解密函数，使用的方法是通过匹配解密函数特征，批量定位解密函数并获取对应的data和key进行解密
demo仓库:Jeremiah-gdut/obf-demo
demo:goron-cse-miniz-example3
TODO
- 实现解密结果直接patch到对应变量
正则表达式
解决这个demo的字符串混淆用到了正则表达式，之前并没有学习过这个内容，所以记录一下正则表达式的知识点
正则表达式（Regular Expression，简称 Regex）是一种用于描述字符串匹配规则的文本模式。它通过特定的语法规则，可以高效地实现文本的搜索、匹配、替换和提取操作。在文本特征匹配中，正则表达式能快速定位符合特定模式的内容（如邮箱、电话号码、日期等），是处理文本数据的核心工具之一。
一、正则表达式核心语法
正则表达式由普通字符（如字母、数字）和元字符（特殊符号）组成，以下是关键语法元素：
1. 基础元字符
| 元字符 | 作用 | 示例 |
|---|---|---|
. | 匹配任意单个字符（除换行符） | a.c → “abc”, “a3c” |
^ | 匹配字符串开头 | ^start → 匹配以 “start” 开头的行 |
$ | 匹配字符串结尾 | end$ → 匹配以 “end” 结尾的行 |
\d | 匹配数字（等价于 [0-9]） | \d{3} → “123” |
\w | 匹配字母、数字或下划线 | \w+ → “user123” |
\s | 匹配空白字符（空格、制表符等） | \s+ → 匹配连续空格 |
2. 量词（控制重复次数）
| 量词 | 作用 | 示例 |
|---|---|---|
* | 匹配前一个元素 0 次或多次 | ab*c → “ac”, “abbc” |
+ | 匹配前一个元素 1 次或多次 | a+b → “ab”, “aaab” |
? | 匹配前一个元素 0 次或 1 次 | colou?r → “color” 或 “colour” |
{n} | 精确匹配前一个元素 n 次 | \d{4} → “2023” |
{n,m} | 匹配前一个元素 n 到 m 次 | a{2,4} → “aa”, “aaaa” |
3. 字符类与分组
| 语法 | 作用 | 示例 |
|---|---|---|
[abc] | 匹配括号内的任意字符 | [aeiou] → 匹配任意元音字母 |
[^abc] | 匹配不在括号内的任意字符 | [^0-9] → 匹配非数字字符 |
(abc) | 分组，捕获匹配的内容 | (ab)+ → 匹配 “abab” |
(转义)| | 逻辑“或” | cat | dog → 匹配 “cat” 或 “dog” |
4. 转义字符
| 符号 | 作用 |
|---|---|
\ | 转义特殊字符（如 \. 匹配真正的点号） |
\b | 匹配单词边界（如 \bword\b 匹配独立的 “word”） |
使用到的IDA API
idautils.Functions()这个IDA的API返回函数地址的列表idaapi.decompile(func_ea)这个API可以获取到func_ea地址处的函数的反编译代码idautils.XrefsTo(funcaddr)获取当前地址的交叉引用idc.get_func_name(funcaddr)获取当前地址的函数名(符号)idaapi.get_bytes(addr, length)获取addr处length个字节的数据
分析demo解密函数的特征

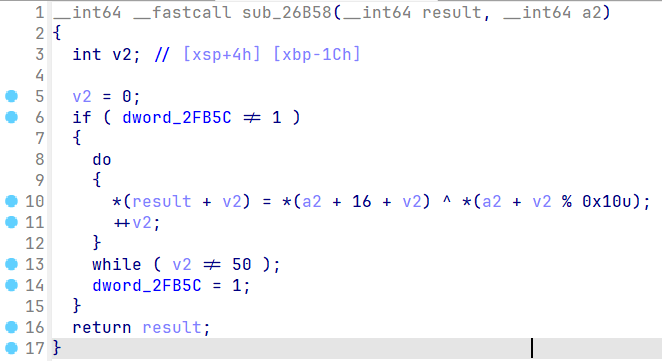

基本上所有的字符串解密函数都长这个样，只有key的长度和data的长度不一样，所以我们需要找出解密函数的共同特征
特征分析
主要提取反编译代码中的字符串
^ *,++,while,!= 1,%
于是可以写出对应的查找函数find_all_encode
- return : 加密函数地址的列表
import idaapi
import idautils
def find_all_encode():
'''
find all encode function
'''
func_addr = []
for func in idautils.Functions():
features = ['^ *', '!= 1', '++', '%', 'while']
func_code = str(idaapi.decompile(func))
if all(feature in func_code for feature in features):
func_addr.append(func)
return func_addr提取密文及密钥长度
简单分析函数之后可以发现密文及密钥的长度位置是固定的，因此可以通过特征匹配来提取两者的长度
*(a2 + v2 % 0x10u): % 后面是密钥的长度key_lengthwhile ( v2 != 50 ): while循环中的判定条件是密文的长度data_length- 密文和密钥在同一个全局变量中,前
key_length个字节是密钥，后面是密文
那么可以用正则表达式匹配对应的字符串写出对应的提取函数extract
import re
def search_key_length(text):
'''
search keylength
'''
pattern = r"%[\s]*(0x[0-9a-fA-F]+|\d+)"
length = re.search(pattern, str(text))
if length:
val = length.group(1)
if val.startswith('0x'):
return int(val, 16)
else:
return int(val)
return None
def search_data_length(text):
'''
search data length
'''
pattern = r"while\s*\([^)]*!=\s*((?:0x[0-9a-fA-F]+)|\d+)[^)]*\)"
length = re.search(pattern, str(text))
if length:
val = length.group(1)
if val.startswith('0x'):
return int(val, 16)
else:
return int(val)
return None
def extract(funcaddr):
'''
extract data and key
'''
funccode = str(idaapi.decompile(funcaddr))
for line in funccode.split('\n'):
if 'while' in line:
datalen = search_data_length(line)
if '%' in line:
keylen = search_key_length(line)
return keylen, datalen定位全局变量的地址
前面我们分析了密文和密钥的长度，为了能够自动化批量解密字符串，我们还需要找到存储密文的地址和解密后密文的地址，有了IDA提供的API我们可以很轻松的找到对应的位置。
思路
- 对
find_all_encode函数中得到的加密函数的地址进行交叉引用，得到调用处的地址 - 解析调用处的文本，通过正则匹配提取对应全局变量的地址，如下图
import idc
def Xref_to_data_and_key(funcaddr, N=2):
'''
find xref to data and key
'''
xrefs = [ref.frm for ref in idautils.XrefsTo(funcaddr)]
funcname = idc.get_func_name(funcaddr)
result = []
for xref in xrefs:
dec = idaapi.decompile(xref)
if dec is None:
continue
dec_str = str(dec)
lines = dec_str.split('\n')
call_line = [i for i, line in enumerate(lines) if funcname in line]
for line in call_line:
context = lines[max(0, line-N):min(len(lines), line+N+1)]
context = '\n'.join(context)
result.append((xref, context))
return result
def match_hex(text):
'''
match hex
'''
pattern = r"_([0-9a-fA-F]+)"
match = re.search(pattern, text)
if match:
return match.group(1)
return None
def extract_addr(funcaddr):
'''
extract data and key address
'''
context = Xref_to_data_and_key(funcaddr, 0)[0][1]
context = context[context.find('('): context.rfind(')') + 1].split(',')
if len(context) != 2:
print("error: ", context)
return None
dst_addr = int(match_hex(context[0]), 16)
data_addr = int(match_hex(context[1]), 16)
return dst_addr, data_addr模拟解密函数
比较简单，不多说
def decrypt(data, key):
'''
decrypt data
'''
data = bytearray(data)
key = bytearray(key)
for i in range(len(data)):
data[i] ^= key[i % len(key)]
return bytes(data)完整实现
import idaapi
import idautils
import idc
import re
def find_all_encode():
'''
find all encode function
'''
func_addr = []
for func in idautils.Functions():
features = ['^ *', '!= 1', '++', '%', 'while']
func_code = str(idaapi.decompile(func))
if all(feature in func_code for feature in features):
func_addr.append(func)
return func_addr
def search_key_length(text):
'''
search keylength
'''
pattern = r"%[\s]*(0x[0-9a-fA-F]+|\d+)"
length = re.search(pattern, str(text))
if length:
val = length.group(1)
if val.startswith('0x'):
return int(val, 16)
else:
return int(val)
return None
def search_data_length(text):
'''
search data length
'''
pattern = r"while\s*\([^)]*!=\s*((?:0x[0-9a-fA-F]+)|\d+)[^)]*\)"
length = re.search(pattern, str(text))
if length:
val = length.group(1)
if val.startswith('0x'):
return int(val, 16)
else:
return int(val)
return None
def extract(funcaddr):
'''
extract data and key
'''
funccode = str(idaapi.decompile(funcaddr))
for line in funccode.split('\n'):
if 'while' in line:
datalen = search_data_length(line)
if '%' in line:
keylen = search_key_length(line)
return keylen, datalen
def Xref_to_data_and_key(funcaddr, N=2):
'''
find xref to data and key
'''
xrefs = [ref.frm for ref in idautils.XrefsTo(funcaddr)]
funcname = idc.get_func_name(funcaddr)
result = []
for xref in xrefs:
dec = idaapi.decompile(xref)
if dec is None:
continue
dec_str = str(dec)
lines = dec_str.split('\n')
call_line = [i for i, line in enumerate(lines) if funcname in line]
for line in call_line:
context = lines[max(0, line-N):min(len(lines), line+N+1)]
context = '\n'.join(context)
result.append((xref, context))
return result
def match_hex(text):
'''
match hex
'''
pattern = r"_([0-9a-fA-F]+)"
match = re.search(pattern, text)
if match:
return match.group(1)
return None
def extract_addr(funcaddr):
'''
extract data and key address
'''
context = Xref_to_data_and_key(funcaddr, 0)[0][1]
context = context[context.find('('): context.rfind(')') + 1].split(',')
if len(context) != 2:
print("error: ", context)
return None
dst_addr = int(match_hex(context[0]), 16)
data_addr = int(match_hex(context[1]), 16)
return dst_addr, data_addr
def decrypt(data, key):
'''
decrypt data
'''
data = bytearray(data)
key = bytearray(key)
for i in range(len(data)):
data[i] ^= key[i % len(key)]
return bytes(data)
def decrypt_all():
'''
decrypt all data
'''
funcs = find_all_encode()
for func in funcs:
try:
keylength, datalength = extract(func)
dst_addr, data_addr = extract_addr(func)
keydata = idaapi.get_bytes(data_addr, keylength)
data = idaapi.get_bytes(data_addr + keylength, datalength)
decrypt_data = decrypt(data, keydata)
print(f'addr: {hex(dst_addr)}', decrypt_data)
except Exception as e:
print(f'error: {hex(func)}')
decrypt_all()最终效果
addr: 0x2f0a8 b'11.0.2\x00'
addr: 0x2f158 b'miniz.c\x00'
addr: 0x2f164 b'tdefl_status tdefl_compress_buffer(tdefl_compressor *, const void *, size_t, tdefl_flush)\x00'
addr: 0x2f1c4 b'd->m_pPut_buf_func\x00'
addr: 0x2f1dc b'\x05\x05\x04\x00'
addr: 0x2f1e4 b'\x02\x03\x07\x00'
addr: 0x2f1ec b'\x03\x03\x0b\x00'
addr: 0x2f1f4 b'tinfl_status tinfl_decompress(tinfl_decompressor *, const mz_uint8 *, size_t *, mz_uint8 *, mz_uint8 *, size_t *, const mz_uint32)\x00'
addr: 0x2f27c b'!num_bits\x00'
addr: 0x2f28c b'rb\x00'
addr: 0x2f294 b'wb\x00'
addr: 0x2f29c b'w+b\x00'
addr: 0x2f2a4 b'r+b\x00'
addr: 0x2f2ac b'mz_bool mz_zip_writer_add_mem_ex_v2(mz_zip_archive *, const char *, const void *, size_t, const void *, mz_uint16, mz_uint, mz_uint64, mz_uint32, time_t *, const char *, mz_uint, const char *, mz_uint)\x00'
addr: 0x2f37c b'(local_dir_header_ofs & (pZip->m_file_offset_alignment - 1)) == 0\x00'
addr: 0x2f3c4 b'bit_flags & MZ_ZIP_LDH_BIT_FLAG_HAS_LOCATOR\x00'
addr: 0x2f3f4 b'mz_bool mz_zip_writer_add_read_buf_callback(mz_zip_archive *, const char *, mz_file_read_func, void *, mz_uint64, const time_t *, const void *, mz_uint16, mz_uint, const char *, mz_uint, const char *, mz_uint)\x00'
addr: 0x2f4cc b'(cur_archive_file_ofs & (pZip->m_file_offset_alignment - 1)) == 0\x00'
addr: 0x2f514 b'mz_bool mz_zip_writer_add_from_zip_reader(mz_zip_archive *, mz_zip_archive *, mz_uint)\x00'
addr: 0x2f570 b'no error\x00'
addr: 0x2f580 b'undefined error\x00'
addr: 0x2f594 b'too many files\x00'
addr: 0x2f5a8 b'file too large\x00'
addr: 0x2f5bc b'unsupported method\x00'
addr: 0x2f5d4 b'unsupported encryption\x00'
addr: 0x2f5f0 b'unsupported feature\x00'
addr: 0x2f608 b'failed finding central directory\x00'
addr: 0x2f630 b'not a ZIP archive\x00'
addr: 0x2f648 b'invalid header or archive is corrupted\x00'
addr: 0x2f674 b'unsupported multidisk archive\x00'
addr: 0x2f698 b'decompression failed or archive is corrupted\x00'
addr: 0x2f6cc b'compression failed\x00'
addr: 0x2f6e4 b'unexpected decompressed size\x00'
addr: 0x2f708 b'CRC-32 check failed\x00'
addr: 0x2f720 b'unsupported central directory size\x00'
addr: 0x2f748 b'allocation failed\x00'
addr: 0x2f760 b'file open failed\x00'
addr: 0x2f778 b'file create failed\x00'
addr: 0x2f790 b'file write failed\x00'
addr: 0x2f7a8 b'file read failed\x00'
addr: 0x2f7c0 b'file close failed\x00'
addr: 0x2f7d8 b'file seek failed\x00'
addr: 0x2f7f0 b'file stat failed\x00'
addr: 0x2f808 b'invalid parameter\x00'
addr: 0x2f820 b'invalid filename\x00'
addr: 0x2f838 b'buffer too small\x00'
addr: 0x2f850 b'internal error\x00'
addr: 0x2f864 b'file not found\x00'
addr: 0x2f878 b'archive is too large\x00'
addr: 0x2f894 b'validation failed\x00'
addr: 0x2f8ac b'write callback failed\x00'
addr: 0x2f8c8 b'total errors\x00'
addr: 0x2f8dc b'unknown error\x00'
addr: 0x2f8f0 b'mz_bool tdefl_compress_normal(tdefl_compressor *)\x00'
addr: 0x2f928 b'd->m_lookahead_size >= len_to_move\x00'
addr: 0x2f950 b'void tdefl_find_match(tdefl_compressor *, mz_uint, mz_uint, mz_uint, mz_uint *, mz_uint *)\x00'
addr: 0x2f9b0 b'max_match_len <= TDEFL_MAX_MATCH_LEN\x00'
addr: 0x2f9dc b'void tdefl_record_match(tdefl_compressor *, mz_uint, mz_uint)\x00'
addr: 0x2fa20 b'(match_len >= TDEFL_MIN_MATCH_LEN) && (match_dist >= 1) && (match_dist <= TDEFL_LZ_DICT_SIZE)\x00'
addr: 0x2fa84 b'int tdefl_flush_block(tdefl_compressor *, int)\x00'
addr: 0x2fab8 b'!d->m_output_flush_remaining\x00'
addr: 0x2fadc b'bits <= ((1U << len) - 1U)\x00'
addr: 0x2fafc b'd->m_pOutput_buf < d->m_pOutput_buf_end\x00'
error: 0x26b58
addr: 0x2fb60 b'void tdefl_start_dynamic_block(tdefl_compressor *)\x00'
addr: 0x2fb98 b'code < TDEFL_MAX_HUFF_SYMBOLS_2\x00'
addr: 0x2fbbc b'mz_bool tdefl_compress_lz_codes(tdefl_compressor *)\x00'
addr: 0x2fbf4 b'd->m_huff_code_sizes[0][s_tdefl_len_sym[match_len]]\x00'
addr: 0x2fc2c b'd->m_huff_code_sizes[1][sym]\x00'
addr: 0x2fc50 b'd->m_huff_code_sizes[0][lit]\x00'
addr: 0x2fc74 b'mz_bool mz_zip_array_ensure_capacity(mz_zip_archive *, mz_zip_array *, size_t, mz_uint)\x00'
addr: 0x2fcd0 b'pArray->m_element_size\x00'
addr: 0x22fcec b'miniz.c version: %s\n\x00'
addr: 0x22fd08 b'11.0.2\x00'
addr: 0x22fd14 b'Usage: example3 [options] [mode:c or d] infile outfile\n\x00'
addr: 0x22fd50 b'\nModes:\n\x00'
addr: 0x22fd60 b'c - Compresses file infile to a zlib stream in file outfile\n\x00'
addr: 0x22fda4 b'd - Decompress zlib stream in file infile to file outfile\n\x00'
addr: 0x22fde4 b'\nOptions:\n\x00'
addr: 0x22fdf4 b'-l[0-10] - Compression level, higher values are slower.\n\x00'
addr: 0x22fe34 b'Invalid level!\n\x00'
addr: 0x22fe48 b'Invalid option: %s\n\x00'
addr: 0x22fe60 b'Must specify mode, input filename, and output filename after options!\n\x00'
addr: 0x22feac b'Too many filenames!\n\x00'
addr: 0x22fec8 b'cCdD\x00'
addr: 0x22fed4 b'Invalid mode!\n\x00'
addr: 0x22fee8 b'Mode: %c, Level: %u\nInput File: "%s"\nOutput File: "%s"\n\x00'
addr: 0x22ff24 b'rb\x00'
addr: 0x22ff2c b'Failed opening input file!\n\x00'
addr: 0x22ff4c b'File is too large to be processed by this example.\n\x00'
addr: 0x22ff84 b'wb\x00'
addr: 0x22ff8c b'Failed opening output file!\n\x00'
addr: 0x22ffb0 b'Input file size: %u\n\x00'
addr: 0x22ffcc b'deflateInit() failed!\n\x00'
addr: 0x22ffe8 b'Failed reading from input file!\n\x00'
addr: 0x230010 b'Failed writing to output file!\n\x00'
addr: 0x230034 b'deflate() failed with status %i!\n\x00'
addr: 0x23005c b'deflateEnd() failed!\n\x00'
addr: 0x230078 b'inflateInit() failed!\n\x00'
addr: 0x230094 b'inflate() failed with status %i!\n\x00'
addr: 0x2300bc b'inflateEnd() failed!\n\x00'
addr: 0x2300d8 b'Total input bytes: %u\n\x00'
addr: 0x2300f4 b'Total output bytes: %u\n\x00'
addr: 0x230110 b'Success.\n\x00'
